Disc Through Hole Plug In Polymeric PTC Resettable Fuses R30-090 R30-250 R30-300

Brand Name : AFTPTC

Model Number : R30-090 R30-250 R30-300

Certification : UL,TUV

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000000pcs per month

Delivery Time : 1 weeks

Packaging Details : Bulk

Name : PTC Resettable Fuses

Series : R30

Type : Polymeric

Voltage - Max : 30V

Current - Hold (Ih) (Max) : 900 mA

Current - Trip (It) : 1.8 A

Current - Max : 100 A

Operating Temperature : -40°C ~ 85°C

Contact Now

Disc Through Hole Plugin Polymeric PTC Resettable Fuses R30-090 R30-250 R30-300

Application:Wide variety of electronic equipment including Speaker frequency divider, electric toys, electric motors, energy-saving lamps, electric heaters, power supplies, chargers, communication products, switches, broadband network equipment, set-top boxes, audio speakers, industrial computers

Product Features:

Low resistance, High hold current, Solid State

Radial-leaded product ideal for up to 30V

Operation Current: 900mA~9A

Maximum Voltage: 30V

Temperature Range: -40ºC to 85 ºC

Specification

Model Maximum Time Resistance
Vmax Imax Ihold Itrip Pd To Trip
Typ. Current Time Rimin Rimax R1max
(Vdc) (A) (A) (A) (W) (A) (Sec) (W) (W) (W)
R30-090 30 40 0.9 1.8 0.6 4.5 5.9 0.07 0.145 0.22
R30-110 30 40 1.1 2.2 0.7 5.5 6.6 0.05 0.12 0.17
R30-135 30 40 1.35 2.7 0.8 6.75 7.3 0.04 0.085 0.13
R30-160 30 40 1.6 3.2 0.9 8 8 0.03 0.07 0.11
R30-185 30 40 1.85 3.7 1 9.25 8.7 0.03 0.06 0.09
R30-250 30 40 2.5 5 1.2 12.5 10.3 0.02 0.04 0.07
R30-300 30 40 3 6 2 15 10.8 0.02 0.05 0.08
R30-400 30 40 4 8 2.5 20 12.7 0.01 0.03 0.05
R30-500 30 40 5 10 3 25 14.5 0.01 0.03 0.05
R30-600 30 40 6 12 3.5 30 16 0.005 0.02 0.04
R30-700 30 40 7 14 3.8 35 17.5 0.005 0.02 0.03
R30-800 30 40 8 16 4 40 18.8 0.005 0.02 0.02
R30-900 30 40 9 18 4.2 40 20 0.005 0.01 0.02

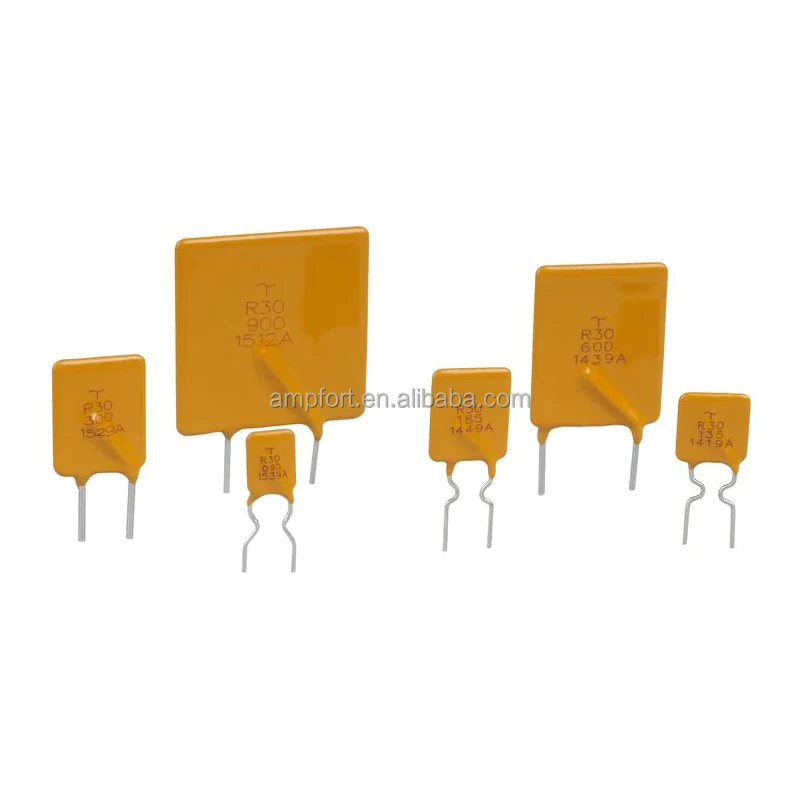

Photos

Disc Through Hole Plug In Polymeric PTC Resettable Fuses R30-090 R30-250 R30-300Disc Through Hole Plug In Polymeric PTC Resettable Fuses R30-090 R30-250 R30-300Disc Through Hole Plug In Polymeric PTC Resettable Fuses R30-090 R30-250 R30-300
