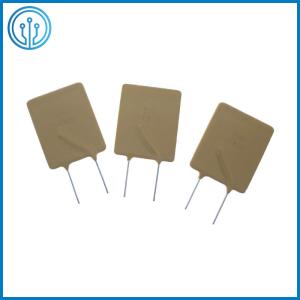

Radial Leaded Automatically Reset High Polymer Resettable Fuse 30V 8A E30-UF800
Description Of The Resettable Fuse 30V 8A
- All products are certified by UL, CSA, TUV
- Protection of electrical and electronic circuits from overcurrent
- Fast switching from low resistance state to very high resistance with electrical overload or short circuit
- Fast automatic reset and return to low resistance state when fault condition is corrected and power is removed
Features Of The Resettable Fuse 30V 8A
- Automatically reset itself thousands of times
- Maintenance free
- Small size, no fuse holder required
Typical Application Of The Resettable Fuse 30V 8A
- Security systems
- Power supplies and transformers
- Power switching devices
- Automotive and medical equipment
- Instrumentation and control
- Computers and peripherals
- Audio visual and telecommunications
Dimension Of The Resettable Fuse 30V 8A
| A | B | C | D | E | Lead |
| MAX | MAX | MAX | MIN | TYP | Φ |
| 21.6 | 29.2 | 3.0 | 7.6 | 10.2 | 0.80 |
Electrical Performance Of The Resettable Fuse 30V 8A
| VMAX (V) | IMAX (A) | Ihold (A) | ITRIP (A) | TTRIP | Pdtyp (W) | RMIN (Ω) | RMAX (Ω) | R1MAX (Ω) |
| (A) | (S) |
| 30 | 40 | 8.00 | 16.00 | 40.00 | 18.8 | 4.0 | 0.005 | 0.02 | 0.03 |
BENEFITS
• Many product choices help provide engineers more design flexibility
• Compatible with high-volume electronics assembly
• Assists in meeting regulatory requirements
• Higher voltage ratings allow use in new applications
Environmental temperature and IH,IT Of The Resettable Fuse 30V 8A
Action time/current curves Table Of The Resettable Fuse 30V 8A
