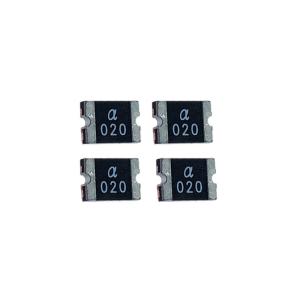

MF-MSMD020-2 Sealand Surface Mount Polymeric PTC Resettable Fuses 1812 60V 200mA Ih 100A Imax 400mA It

Name: MFMSMD0202 Sealand Surface Mount Polymeric PTC Resettable Fuses 1812 60V 200mA Ih 100A Imax 400mA It
Brand: SEALAND
Price: 1 USD

China MF-MSMD020-2 Sealand Surface Mount Polymeric PTC Resettable Fuses 1812 60V 200mA Ih 100A Imax 400mA It factory

Brand Name : SEALAND

Model Number : mSMD020-60V

Certification : UL,TUV

Place of Origin : Huizhou,China

MOQ : 1500pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 1KKPCS PER MONTH

Delivery Time : 7 Workdays

Packaging Details : Tape,1500pcs per reel

Name : Polymeric PTC Resettable Fuse

Series : Multifuse

Package : Tape & Reel (TR)

Type : Polymeric

Voltage - Max : 60V

Current - Hold (Ih) (Max) : 200 mA

Current - Trip (It) : 400 mA

Current - Max : 100A

Time to Trip : 0.02 sec

Operating Temperature : -40°C ~ 85°C

Mounting Type : Surface Mount

Package / Case : 1812 (4532 Metric)

Contact Now

MF-MSMD020-2 Sealand Surface Mount Polymeric PTC Resettable Fuses 1812 60V 200mA Ih 100A Imax 400mA It

mSMD Series is 1812 chip size, surface mount PTC resettable fuse with fast trip time and high hold currents. Maximum voltage 6 - 60V DC, operating (hold current) range 100mA - 4A, max current 100A, operating temperature -40ºC to 85ºC.

The 1812 Series PTC provides surface mount overcurrent protection for medium voltage (≤60V) applications where resettable protection is desired.

Surface Mount Resettable Fuse Overview
Series	Size	Holder Current Range	Max. Voltage Range
SMD0603 0603	0603	0.01~0.75A	6~60V
SMD0805 0805	0805	0.02~1.25A	6~60V
nSMD	1206	0.03~2.5A	6~60V
SMD1210 1210	1210	0.05~2A	6~60V
mSMD	1812	0.03~4A	6~60V
SMD2018 2018	2018	0.3~3A	10~60V
SMD	2920	0.3~8A	6~60V

Surface Mount Devices Lead free device Size 4.5*3.2 mm/0.18*0.12 inch

Surface Mount packaging for automated assembly

Applications:

Almost anywhere there is a low voltage power supply, up to 60V and a load to be protected, including:Computer mother board, Modem.

Surface Mount Devices

Standard 4532mm(1812mils) footprint

Surface mount packaging forautomated assembly

Compatible with Pb and Pb-free solder

High Density Circuit Board

Applications:

Hard disk drives

PC motherboards

PC peripherals

Point-of-sale (POS) equipment

TUV Rheinland

PCMCIA cards

Over-current and over-temperature protection of automotive electronics

PC motherboards, Hard disk driver

POS Equipment

USB port protection

HDMI source protection

MF-MSMD020-2 Sealand Surface Mount Polymeric PTC Resettable Fuses 1812 60V 200mA Ih 100A Imax 400mA It

1. Perfermance Specification

Model						Maximum		Resistance		Agency Approval
	Vmax	Imax	Ihold	Itrip	Pd	Time To Trip				Agency Approval
			@25°C	@25°C	Typ.	Current	Time	Rimin	R1max	UL	TUV
	(Vdc)	(A)	(A)	(A)	(W)	(A)	(Sec)	(W)	(W)	UL	TUV
mSMD003	60	100	0.03	0.10	0.8	0.3	1.00	5.000	50.000
mSMD005	60	100	0.05	0.20	0.8	0.5	1.00	2.000	25.000
mSMD010	30	100	0.10	0.30	0.8	0.5	1.50	0.750	15.000	√	√
mSMD010-60V	60	100	0.10	0.30	0.8	0.5	1.50	0.750	15.000	√	√
mSMD014	60	100	0.14	0.34	0.8	1.5	0.15	0.650	6.000	√	√
mSMD020	30	100	0.20	0.40	0.8	8.0	0.02	0.350	5.000	√	√
mSMD020-60V	60	100	0.20	0.40	0.8	8.0	0.02	0.350	5.000	√	√
mSMD030	30	100	0.30	0.60	0.8	8.0	0.10	0.250	3.000	√	√
mSMD030-60V	60	100	0.30	0.60	0.8	8.0	0.10	0.250	3.000		√
mSMD035	30	100	0.30	0.60	0.8	8.0	0.10	0.230	2.800		√
mSMD035-60V	60	100	0.30	0.60	0.8	8.0	0.10	0.230	2.800		√
mSMD050-15V	15	100	0.50	1.00	0.8	8.0	0.15	0.150	1.000	√	√
mSMD050	33	100	0.50	1.00	0.8	8.0	0.15	0.150	1.000	√	√
mSMD050-60V	60	100	0.50	1.00	0.8	8.0	0.15	0.150	1.000	√	√
mSMD075	13.2	100	0.75	1.50	0.8	8.0	0.20	0.090	0.450	√	√
mSMD075-16V	16	100	0.75	1.50	0.8	8.0	0.20	0.090	0.450		√
mSMD075-24V	24	100	0.75	1.50	0.8	8.0	0.20	0.090	0.450	√	√
mSMD075-33V	33	100	0.75	1.50	0.8	8.0	0.20	0.090	0.450	√	√
mSMD100	8	100	1.00	1.80	0.8	8.0	0.30	0.055	0.270		√
mSMD100-16V	16	100	1.00	1.80	0.8	8.0	0.30	0.055	0.270		√
mSMD100-24V	24	100	1.00	1.80	0.8	8.0	0.30	0.055	0.270		√
mSMD100-33V	33	100	1.00	1.80	0.8	8.0	0.30	0.055	0.270		√
mSMD110	8	100	1.10	2.20	0.8	8.0	0.30	0.050	0.250	√	√
mSMD110-16V	16	100	1.10	2.20	0.8	8.0	0.30	0.050	0.250	√	√
mSMD110-24V	24	100	1.10	2.20	0.8	8.0	0.30	0.050	0.250		√
mSMD110-33V	33	100	1.10	2.20	0.8	8.0	0.30	0.050	0.250	√	√
mSMD125	16	100	1.25	2.50	0.8	8.0	0.40	0.050	0.140	√	√
mSMD125-24V	24	100	1.25	2.50	0.8	8.0	0.40	0.050	0.140	√	√
mSMD125-33V	33	100	1.25	2.50	0.8	8.0	0.40	0.050	0.140	√	√
mSMD150	8	100	1.50	3.00	0.8	8.0	0.50	0.040	0.160	√	√
mSMD150-16V	16	100	1.50	3.00	0.8	8.0	0.50	0.040	0.160	√	√
mSMD150-24V	24	100	1.50	3.00	0.8	8.0	0.50	0.040	0.160		√
mSMD160	8	100	1.60	2.80	0.8	8.0	1.00	0.030	0.130	√	√
mSMD160-13.2V	13.2	100	1.60	2.80	0.8	8.0	1.00	0.030	0.130		√
mSMD160-16V	16	100	1.60	2.80	0.8	8.0	1.00	0.030	0.130		√
mSMD200	8	100	2.00	4.00	0.8	8.0	2.00	0.020	0.100	√	√
mSMD200-13.2V	13.2	100	2.00	4.00	0.8	8.0	2.00	0.020	0.100	√	√
mSMD200-16V	16	100	2.00	4.00	0.8	8.0	2.00	0.020	0.100	√	√
mSMD200-24V	24	100	2.00	4.00	0.8	8.0	2.00	0.020	0.100	√	√
mSMD200-30V	30	100	2.00	4.00	0.8	8.0	2.00	0.020	0.100
mSMD260	8	100	2.60	5.00	0.8	8.0	2.50	0.015	0.050	√	√
mSMD260-13.2V	13.2	100	2.60	5.00	0.8	8.0	2.50	0.015	0.080	√	√
mSMD260-16V	16	100	2.60	5.00	0.8	8.0	2.50	0.015	0.080	√	√
mSMD260-24V	24	100	2.60	5.00	0.8	8.0	2.50	0.015	0.080	√	√
mSMD300-6V	6	100	3.00	5.00	0.8	8.0	4.00	0.012	0.040	√	√
mSMD300	8	100	3.00	5.00	0.8	8.0	4.00	0.012	0.040	√	√
mSMD300-12V	12.0	100	3.00	5.00	0.8	8.0	4.00	0.012	0.040	√	√
mSMD300-13.2V	13.2	100	3.00	5.00	0.8	8.0	4.00	0.012	0.040	√	√
mSMD300-16V	16.0	100	3.00	5.00	0.8	8.0	4.00	0.012	0.040	√	√
mSMD350	6	100	3.50	6.00	2.0	10.0	4.00	0.008	0.030		√
mSMD375	6	100	3.75	7.00	2.0	12.0	4.00	0.007	0.028		√
mSMD400	6	100	4.00	8.00	2.0	12.0	5.00	0.006	0.025		√

Ihold = Hold Current. Maximum current device will not trip in 25°C still air.

Itrip = Trip Current. Minimum current at which the device will always trip in 25°C still air.

Vmax = Maximum operating voltage device can withstand without damage at rated current (Imax).

Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax).

Pd = Power dissipation when device is in the tripped state in 25°C still air environment at rated voltage.

Rimin/max = Minimum/Maximum device resistance prior to tripping at 25°C.

R1max = Maximum device resistance is measured one hour post reflow.

CAUTION : Operation beyond the specified ratings may result in damage and possible arcing and flame.
