PPTC Resettable Fuse 30V 3A Polyswitch Thermistor For Motor Overcurrent Protection
Description Of The PPTC Resettable Fuse 30V 3A Polyswitch Thermistor

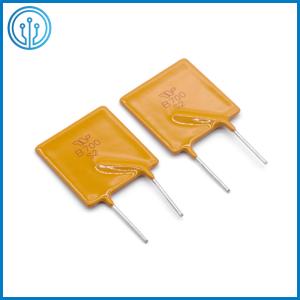

The TRB 30V Series radial leaded device is designed to provide overcurrent protection for low voltage (≤30V) applications where space is not a concern and resettable protection is preferred.
Features Of The PPTC Resettable Fuse 30V 3A Polyswitch Thermistor
• Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements
• Fast time–to-trip
• Radial leaded
• RoHS compliant, Lead- Free and Halogen-Free
Application Of The PPTC Resettable Fuse 30V 3A Polyswitch Thermistor
• USB hubs, ports and peripherals
• Computers & peripherals
• Motor protection
• General electronics
• Automotive applications
Electrical Characteristics Of The PPTC Resettable Fuse 30V 3A Polyswitch Thermistor
| P/N | IH, (A) | IT,(A) | Vmax,(v) | Imax,(A) | (A) | (Sec.) | Pd typ(W) | Rmin | Rmin | R1max |
| TRB090 | 0.90 | 1.80 | 30 | 40 | 4.50 | 5.9 | 0.60 | 0.090 | 0.230 | 0.300 |
| TRB110 | 1.10 | 2.20 | 30 | 40 | 5.50 | 6.6 | 0.70 | 0.060 | 0.160 | 0.260 |
| TRB120 | 1.20 | 2.40 | 30 | 40 | 6.00 | 6.5 | 0.70 | 0.050 | 0.115 | 0.255 |
| TRB135 | 1.35 | 2.70 | 30 | 40 | 6.75 | 7.3 | 0.80 | 0.040 | 0.095 | 0.170 |
| TRB160 | 1.60 | 3.2 | 30 | 40 | 8.00 | 8.0 | 0.90 | 0.030 | 0.095 | 0.160 |
| TRB185 | 1.85 | 3.7 | 30 | 40 | 9.25 | 8.7 | 1.00 | 0.030 | 0.070 | 0.110 |
| TRB250 | 2.50 | 5.0 | 30 | 40 | 12.5 | 10.3 | 1.20 | 0.020 | 0.048 | 0.072 |
| TRB300 | 3.00 | 6.00 | 30 | 40 | 15.0 | 10.8 | 2.00 | 0.015 | 0.050 | 0.075 |
| TRB400 | 4.00 | 8.00 | 30 | 40 | 20.0 | 12.7 | 2.50 | 0.010 | 0.030 | 0.045 |
| TRB500 | 5.00 | 10.00 | 30 | 40 | 25.0 | 14.5 | 3.00 | 0.008 | 0.025 | 0.045 |
| TRB600 | 6.00 | 12.00 | 30 | 40 | 30.0 | 16.0 | 3.50 | 0.005 | 0.020 | 0.030 |
| TRB700 | 7.00 | 14.00 | 30 | 40 | 35.0 | 17.5 | 3.80 | 0.003 | 0.016 | 0.025 |
| TRB800 | 8.00 | 16.00 | 30 | 40 | 40.0 | 18.8 | 4.00 | 0.004 | 0.015 | 0.023 |
| TRB900 | 9.00 | 18.00 | 30 | 40 | 40.0 | 20.0 | 4.00 | 0.004 | 0.010 | 0.015 |
Thermal Derating Chart – I hold (Amps) Of The PPTC Resettable Fuse 30V 3A Polyswitch Thermistor
| P/N | Ambient Operating Temperature |
| -40℃ | -20℃ | 0℃ | 25℃ | 40℃ | 50℃ | 60℃ | 70℃ | 85℃ |
| TRB090 | 1.40 | 1.22 | 1.07 | 0.90 | 0.73 | 0.65 | 0.57 | 0.49 | 0.36 |
| TRB110 | 1.60 | 1.43 | 1.27 | 1.10 | 0.91 | 0.85 | 0.75 | 0.67 | 0.57 |
| TRB120 | 1.75 | 1.56 | 1.39 | 1.20 | 0.99 | 0.93 | 0.82 | 0.73 | 0.62 |
| TRB135 | 1.96 | 1.76 | 1.55 | 1.35 | 1.12 | 1.04 | 0.92 | 0.82 | 0.70 |
| TRB160 | 2.32 | 2.08 | 1.84 | 1.60 | 1.33 | 1.23 | 1.09 | 0.98 | 0.83 |
| TRB185 | 2.68 | 2.41 | 2.13 | 1.85 | 1.54 | 1.42 | 1.26 | 1.13 | 0.96 |
| TRB250 | 3.63 | 3.25 | 2.88 | 2.50 | 2.08 | 1.93 | 1.70 | 1.53 | 1.30 |
| TRB300 | 4.35 | 3.90 | 3.45 | 3.00 | 2.49 | 2.31 | 2.04 | 1.83 | 1.56 |
| TRB400 | 5.80 | 5.20 | 4.60 | 4.00 | 3.32 | 3.08 | 2.72 | 2.44 | 2.08 |
| TRB500 | 7.25 | 6.50 | 5.75 | 5.00 | 4.15 | 3.85 | 3.40 | 3.05 | 2.60 |
| TRB600 | 8.70 | 7.80 | 6.90 | 6.00 | 4.98 | 4.62 | 4.08 | 3.66 | 3.12 |
| TRB700 | 10.10 | 9.10 | 8.05 | 7.00 | 5.81 | 5.39 | 4.76 | 4.27 | 3.64 |
| TRB800 | 11.60 | 10.40 | 9.20 | 8.00 | 6.64 | 6.16 | 5.44 | 4.88 | 4.16 |
| TRB900 | 13.00 | 11.70 | 10.30 | 9.00 | 7.47 | 6.93 | 6.12 | 5.49 | 4.68 |
Typical time to trip at 25℃ Of The PPTC Resettable Fuse 30V 3A Polyswitch Thermistor
The Time to Trip curves represent typical performance of a device in a simulated application environment.
Actual performance in specific customer applications may differ from these values due to the influence of other variables.
