Visible Light Sensor CDS Photoresistor GL10516 GL10528 GL10537-1 GL10537-2 GL10539 Light Dependent Resistor Photocell

Brand Name : CNAMPFORT

Model Number : GL105

Certification : ISO

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100,000,000pcs per month

Delivery Time : 1-2 weeks

Packaging Details : Bulk

Name : CDS Photoresistor

Norminal diameter : 10mm

Environmental Temp. : -30~+70℃

Spectrumpeak value : 560nm

Maximum Voltage : 200V

Maximum power : 200mW

Contact Now

Visible Light Sensor CDS Photoresistor GL10516 GL10528 GL10537-1 GL10537-2 GL10539 Light Dependent Resistor Photocell

Features

Epoxy encapsulation

Good reliability

Small size

High sensitivity

Fast response

Good spectral characteristics

General Description
A photoresistor is a resistor made of a semiconductor material whose conductivity changes as light illuminance changes. This property is used
to make photoresistors of different shapes and areas. Photoresistor is widely used in toys, lamps, cameras and other industries.

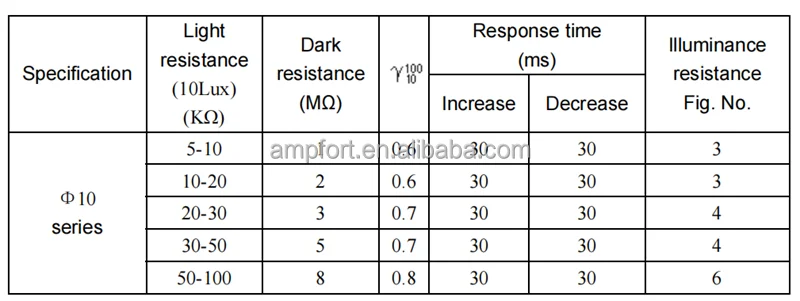

Specification

Specification Type Maximum Voltage Maximum power

Environmental

Temp.

 Spectrumpeak value Light resistance(10Lux)(KΩ) Dark resistance(MΩ) Response time(ms)
Increase Decrease
φ10 series GL10516 200 200 -30~+70℃ 560 5- 10 1 30 30
GL10528 200 200 -30~+70℃ 560 10- 20 2 30 30
GL10537-1 200 200 -30~+70℃ 560 20- 30 3 30 30
GL10537-2 200 200 -30~+70℃ 560 30- 50 5 30 30
GL10539 200 200 -30~+70℃ 560 50- 100 8 30 30

Applications

Lead sulfide (PbS) and indium antimonide (InSb) LDRs (light-dependent resistors) are used for the mid-infrared spectral region.

FAQ

1. What is the test condition?

Light resistance Irradiate by 400-600Lux light for two hours, then test with 10Lux under standard light source A(as colour temperature 2856K)

Dark resistance Refer to the resistance value ten seconds after the 10Lux light is shut up.

2. Samples.

Free samples are available for testing.
