Temp Measurement NTC Thermistor 50K 1% 3950 With Red Enamelled Wire

Name: Temp Measurement NTC Thermistor 50K 1 3950 With Red Enamelled Wire
Brand: AFTNTC
Price: 1 USD

China Temp Measurement NTC Thermistor 50K 1% 3950 With Red Enamelled Wire factory

Brand Name : AFTNTC

Model Number : MF52B503F395030L80

Certification : ROHS

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000000pcs per month

Delivery Time : 1~2 weeks

Packaging Details : Bulk

Name : NTC Thermistor 50K

Temperature Range : -55~+125℃

Cable Material : Enamelled wire

B Value At 25/50°C : 3950K

Resistance Value : 50K

Resistance Tolerance : F ±1%

Contact Now

Temp Measurement NTC Thermistor 50K 1% 3950 With Red Enamelled Wire

Technical requirements

1) R25:50KΩ±1%(Zero Power Resistance: R25:50KΩ±1%);

2) B-value:B25/50: 3950K±1%;

3) OD Φ0.3Red namelled wire);

4) Black Epoxy;

5) Meet environmental protection requirements:RoHS

Electrical Characteristics

Zero Power Resistance at 25℃	50KΩ±1%
B-value	3950±1%
Thermal dissipation Coefficient	app. 0.6
Thermal time constant	app. 4
Insulation resistance	>100M Ohm
Operating temperature range	-55℃~ 125℃
Maximum rated power	50mW

Application scope

- Air conditioning equipment;

- Heating equipment;

- Electronic thermometer;

- Liquid level sensor;

- Vehicle electronics;

- Electronic desk calendar;

- Cell phone battery.

Features

- High test accuracy;

- Small size and fast response speed;

- Can work stably for a long time;

- Good interchangeability and consistency;

- Large-scale production, high cost performance.

Installation method

a) For use, use general soldering method for installation;

b) For vibration and impact tests, the leads are fixed and the fixed point is 6±1mm away from the resistor body.

Temp Measurement NTC Thermistor 50K 1% 3950 With Red Enamelled Wire

Product Tags:

Red Enamelled Wire NTC Thermistor

1% NTC Thermistor

3950 NTC Thermistor

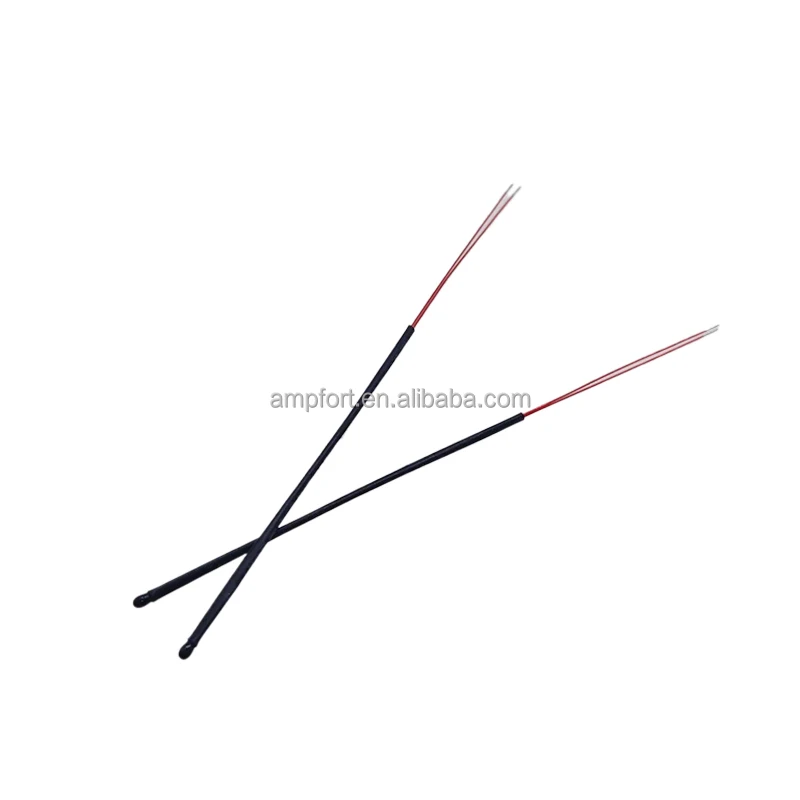

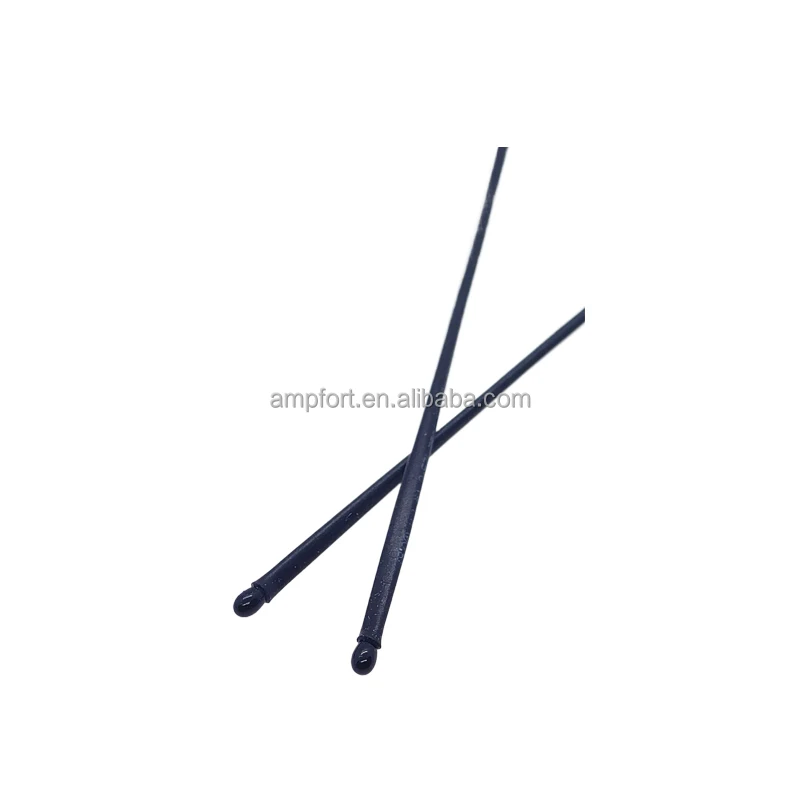

Temp Measurement NTC Thermistor 50K 1% 3950 With Red Enamelled Wire Images
