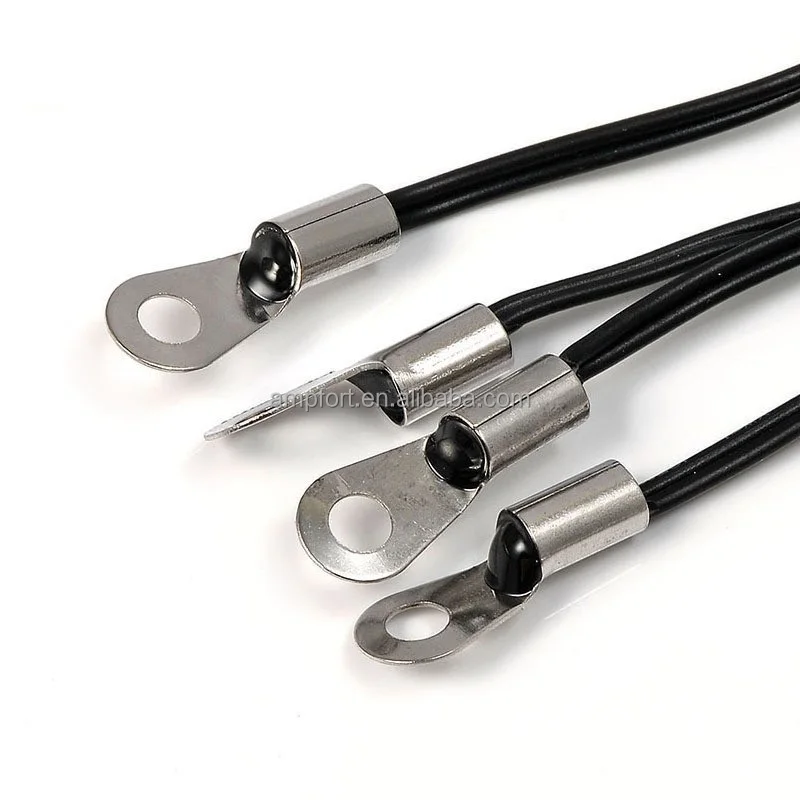

Standard Sensor M3 Ring Lug NTC Thermistor 100K 3950 26AWG 300mm

Brand Name : AFTNTC

Model Number : ATSR0104FC1301CN

Certification : ROHS

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000000pcs per month

Delivery Time : 2-3 weeks

Packaging Details : Bulk

Name : Ring Lug NTC Thermistor

Insulation For : M3 screw

Thermistor : 100K 1% 3950

Wire : UL2651 26AWG 105C

Ring Lug : RNB5.5-3.2

Operation Temperature : -20 ~ +105C

Contact Now

Standard Sensor M3 Ring Lug NTC Thermistor 100K 3950 26AWG 300mm

APPLICATIONS

Suitable for surface sensing applications, especially when agood electrical insulation and a good thermal contact withthe chassis is required.

DESCRIPTION

A NTC thermistor chip is soldered to AWG#26 PVC Cable and insulated with epoxy coating. The insulated sensor isattached to a tin plated copper ring lug. The lead wires are stripped or crimped .

FEATURES

- Easy mounting using ring tongue terminal

- Rugged construction

- Cable of PVC 2651 Double line

- By means of M3 screw. Leads to be solderedor crimped

- The device is suitable for screwing e.g. on metal surface

- The leads are suitable for soldering e.g. on PCB

Specification

Name Ring lug ntc thermistor
Terminal By means of M3 screw. Leads to be soldered or crimped
Thermistor 100K-1%-3950
Cable 2651#26awg 300mm
Temp -20~+105C
Housing RNB5.5-3.2
Customized Yes
MPQ 500
MOQ 500

Standard Sensor M3 Ring Lug NTC Thermistor 100K 3950 26AWG 300mm
