ANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video System

Brand Name : CNAMPFORT

Model Number : ANL

Certification : ROHS

Place of Origin : CHINA

MOQ : 500

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 9000,000pcs per month

Delivery Time : 1 Weeks

Packaging Details : Bulk

Name : Bolt Down Fuse

Rated current : 500A Max

Rated Voltage : 32VDC

Mounting Type : Surface Mount

Overall Size : 80x22.5x9 mm/ 3.15x0.9x0.35 inch (L*W*T)

Material : Gold tone plated metal sheet construction

Contact Now

ANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video System

Product Description

The fuses shown are for in motor vehicles, boats and trailers to protect electrical wiring and vehicles. This standard is for the construction shown and is not intended to restrict the design and use of other configurations and materials capable of meeting the vehicle requirements.Complies Standard DIN43560/1;

Product parts list

1, Case: Bakelite

2, Metal part: Copper/Plated Cu+Zn/Plated Ni

3, Transparent Cover: IS-3PC

4, Connector: Brass

Features

A fuse is a device designed to interrupt the electrical circuit when subjected to overcurrent. This action is to be nonreversible and the fuse is intended to be replaced after the circuit malfunction has been corrected. Dongguan Ampfort Electronics Co., Ltd. capable of meeting the vehicle requirements.

Specification

ANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video System

Functional Characteristics

TESTING CURRENT BLOW TIME LIMIT
150% 1Hr. minimum
220% 60seconds Max
250% 0.8sec-10sec
400% 0.2sec-2sec

Remark: Characteristics of fuses according to use conditions may change.

ANL-B-25 25A 2.5mΩ
ANL-B-30 30A 2.38 mΩ
ANL-B-35 35A 2.3 mΩ
ANL-B-40 40A 2.2 mΩ
ANL-B-50 50A 1.25 mΩ
ANL-B-60 60A 1.0 mΩ
ANL-B-70 70A 1.2 mΩ
ANL-B-80 80A 0.9 mΩ
ANL-B-100 100A 0.75 mΩ
ANL-B-125 125A 0.65 mΩ
ANL-B-130 130A 0.6 mΩ
ANL-B-150 150A 0.45 mΩ
ANL-B-175 175A 0.4 mΩ
ANL-B-200 200A 0.35 mΩ
ANL-B-250 250A 0.57 mΩ
ANL-B-275 275A 0.5 mΩ
ANL-B-300 300A 0.21 mΩ
ANL-B-350 350A 0.16 mΩ
ANL-B-400 400A 0.15 mΩ

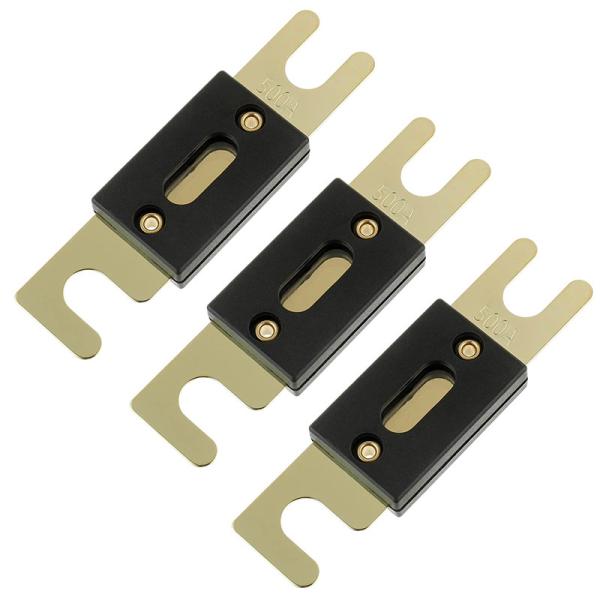

Product Display

ANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video SystemANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video SystemANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video SystemANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video SystemANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video SystemANL Automotive Bolt Down Fuse Block 100A 150A 200A 250A 300A 400A 500A For Truck Boat Car Audio Video System
