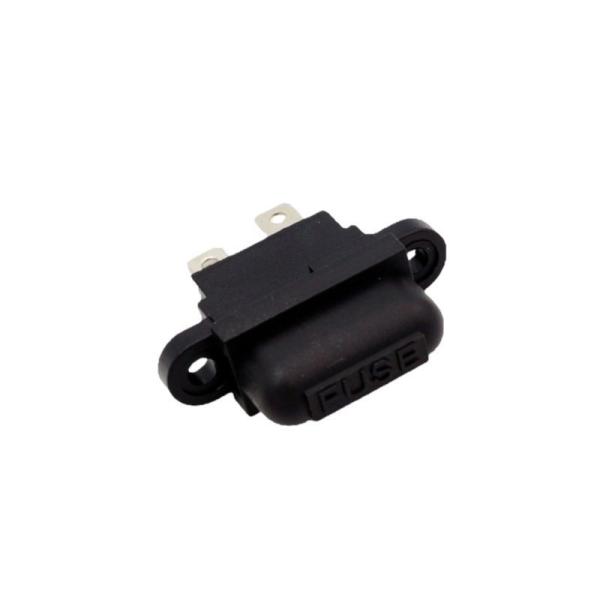

Panel Mount Blade Fuse Holder XY-703C With Black Cap For ATU ATC ATO Standard Auto Car Fuses
Description
Special blade fuse for automobile lighting, audio, UPS, auto headlights, taillights, stoplights, electronic circuit board or other electronic products with low voltage circuit. ATC/ATO blade fuse (also called spade or plug-in fuse) comes with a high-temperature, impact-resistant plastic casing & two prongs that fit into sockets mostly used in automobiles. Each fuse is printed with rated current in amperes on the top.A Panel Mount Blade Fuse Holder with Black Cap for standard blade fuses in electronic products like inverters is designed with a focus on secure and convenient installation, durability, and safety. Its panel-mounting features make it suitable for integration into equipment enclosures, where it can provide reliable protection for the circuits while ensuring ease of maintenance.

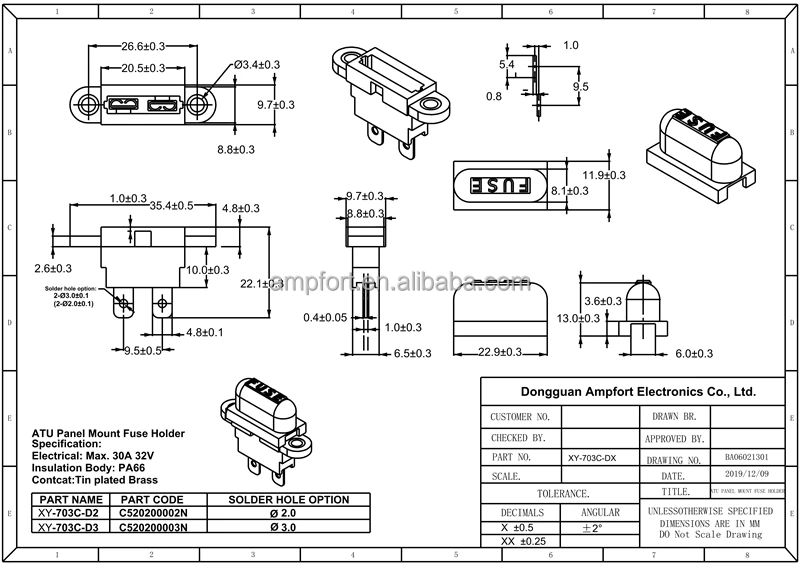

Specification
| Name: | PCB Blade Fuse Holder |
| Pin: | 2 Pin |
| Body material: | PA66 |
| Contact material: | Tin plated brass |
| Operating voltage: | 32V |
| Operating current: | 40A |
| Applicable: | ATC/ATU/ATO standard blade fuse |
| Temperature: | -30C~125C |
| Flame retardant rating: | UL94V2 |
| Features: | Stable quality, strong and durable |
Advantages
1. Body Material: The body of the fuse holder is constructed from PA66, a durable and heat-resistant thermoplastic material. PA66 is well-suited for electronic applications due to its insulating properties and resistance to environmental factors.
2. Metal Part: The metal part of the fuse holder is typically made of brass with a tinned finish. This brass construction ensures good electrical conductivity and corrosion resistance, while the tinning enhances the metal's durability.
3. Fuse Compatibility: This panel-mount fuse holder is designed to accommodate a standard blade fuse, making it compatible with commonly used fuses in electronic circuits.
4. Cap: the black cap protects the fuse and the circuit from environmental factors such as dust, moisture, and accidental contact. It also prevents users from accidentally touching live electrical contacts.
5. Pins: The fuse holder has two pins designed for easy insertion into corresponding sockets on the panel or enclosure. These pins provide a stable electrical connection between the holder and the circuit, ensuring reliable current flow.
6. Panel Mounting: The primary feature of this fuse holder is its panel-mount design. It is equipped with mounting tabs or flanges that allow it to be securely attached to a panel or enclosure. These mounting options ensure that the fuse holder remains firmly in place within the electronic product's housing.
Application

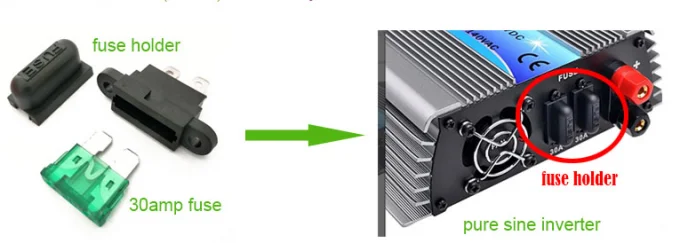

1. Pure Sine Inverters: These fuse holders are commonly used in pure sine wave inverters to protect against overcurrent conditions. Inverters convert DC (direct current) power from sources like batteries or solar panels into AC (alternating current) power for use in household appliances and electronic devices.
2. Solar Inverters: Solar inverters, which convert DC power generated by solar panels into AC power for use in homes or the grid, utilize fuse holders to safeguard the inverter's internal circuits.
3. Power Distribution Panels: Fuse holders are often employed in power distribution panels or electrical control cabinets to protect individual circuits or components from overloads or short circuits.
4. Automotive Electronics: In automotive applications, these fuse holders can be used to protect various electrical circuits within the vehicle, such as those related to lighting, heating, and infotainment systems.
This fuse holder for ATC/ATO blade fuse, mainly using in pure sine inverter solar inverter and other electronic products.
