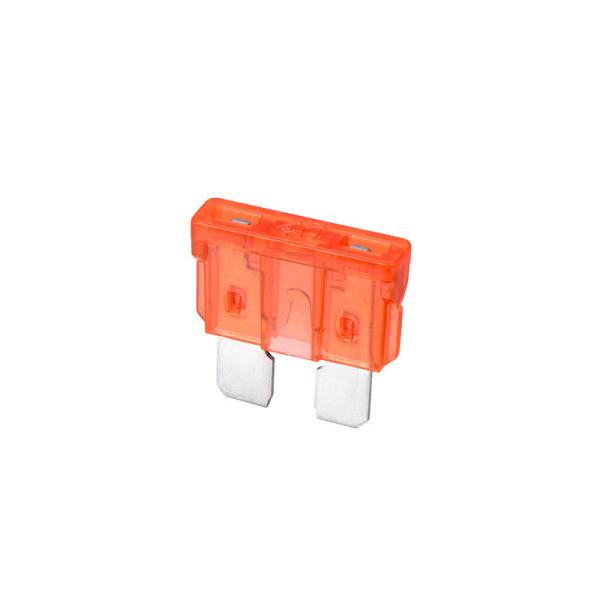

Spade Plug-in Regular Standard Blade Type Car Fuse APR ATC ATO ATS 1A 2A 3A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A 50A
1. Piece fuse: Piece -type fuse can be divided into: ultra -small plug -in fuses, small car fuses, medium car fuses, large car fuses. The rated current is 1-40 amp (A) ~ large 30-120 amp (A), rated voltage 32 volt (V).
2, fork -bolt fuse: The fork bolt fuse can be divided into: small fork bolt fuse, large fork bolt fuse. The rated current is 30-150 amp (A) ~ large 40-800 ampere (A), and the rated voltage 32/125 volt (V).
3. Car glass pipe fuse: car glass pipe fuse can be divided into: 6.35 × 30mm glass tube fuse, 6.35 × 31.75mm glass tube fuse, 10 × 38mm glass tube fuse. The rated current is 0.5-20 amp (A) ~ 10 × 38mm20-80 amp (A), and the rated voltage 32 volt (V).
Color coding shows the amperage rating for each fuse
High-contrast amperage stamp on the top of the housing aids identification
See-through housing makes it easy to check whether a fuse has blown
Simple to install and remove Checkpoints on top make it possible to measure resistance without removing the fuse
Breaking capacity: 1000A@32VDC
Rated voltage:32V
Operating temp range:-40~+85C
Terminal: Zinc alloy
Housing material: Nylon/PC
Standards compliant: SAE J2077 ISO 8820 UL 248 Special Purpose Fuses
The role of fuses is to protect the circuit (line) and electric equipment. Automotive fuse works in the DC environment commonly used in vehicles. The rated voltage of the fuse is 32 to 80 volts, and the rated value of ampere is 0.5 to 500 amp. Bundes are widely used in cars, trucks, buses and off -road transportation equipment to protect cables, wires and electrical components supplied to the operation lights, heaters, air conditioners, radios, electric windows and other electrical attachments. They are also used for electric and hybrid vehicles and various electronic applications. Typical car fuses include car blade fuses, such as car ATO fuses, car MINI fuses, car MAXI fuses and car MEGA fuses.
Size (unit:mm)
Electrical Characteristics
| Testing current | Blow Time |
| Min. | Max. |
| 110% | 4 hour | - |
| 135% | 0.75s | 10min |
| 200% | 0.15s | 5s |
| 350% | 0.08s | 0.25s |
| 600% | 0.03s | |
Ordering info
| P/N | Rated current | Rated voltage DC | Cold resistance+/-10% | Color mark |
| MIN-NL1-01 | 1A | 32V | 60.88mohm | Black |
| MIN-NL1-02 | 2A | 37.5mohm | Gray |
| MIN-NL1-03 | 3A | 23.75mohm | Purple |
| MIN-NL1-05 | 5A | 17.75mohm | Tam |
| MIN-NL1-7.5 | 7.5A | 10.58mohm | Brown |
| MIN-NL1-10 | 10A | 7.82mohm | Red |
| MIN-NL1-15 | 15A | 5.10mohm | Blue |
| MIN-NL1-20 | 20A | 3.21mohm | Yellow |
| MIN-NL1-25 | 25A | 2.70mohm | Natural |
| MIN-NL1-30 | 30A | 1.85mohm | Green |
Mini-Nylon
Standard-Nylon
Maxi--Nylon
Fuse kits
