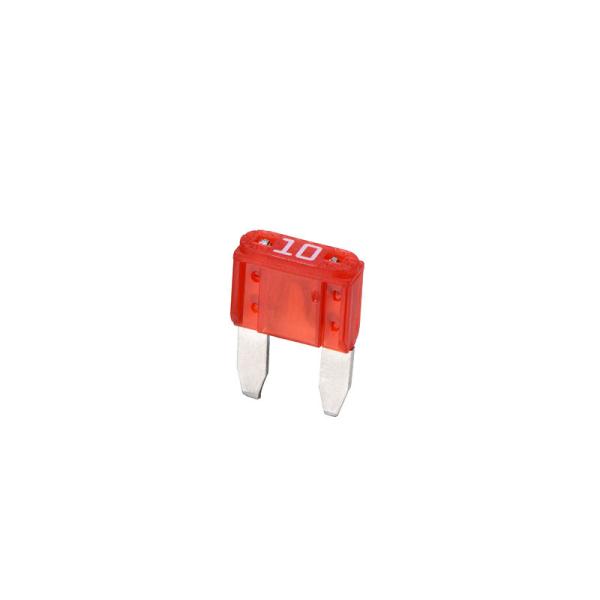

Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive

Name: Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive
Brand: AMPFORT
Price: 1 USD

China Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive factory

Brand Name : AMPFORT

Model Number : MINI/ATC/MAXI

Certification : ROHS,UL

Place of Origin : Dongguan,China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 3000000 Piece/Pieces per Month

Delivery Time : 7 workdays

Packaging Details : Bulk/Box

Name : Auto Blade Fuse

Dimension : 11mm/19mm/29mm

Rated Current : 1-100A

Rated Voltage : 32V,58V,80V,125V

Fuse body : PC/NYLON

Terminal : Znc alloy

Contact Now

High Temperature Nylon ASP Mini Auto Blade Fuse 1A 2A 3A 5A 7.5A 10A 15A 20A 25A 30A 35A 40A For Automotive Car Fuse Box

Space-saving Nylon housed mini automotive blade fuse 32V designed bring more circuit protection for auotomakers and aftermarketer. Even if it is light weight but it withstand high temperature and reliable in relatively heavy environments.

Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive

Color coding shows the amperage rating for each fuse
High-contrast amperage stamp on the top of the housing aids identification
See-through housing makes it easy to check whether a fuse has blown
Simple to install and remove Checkpoints on top make it possible to measure resistance without removing the fuse

Breaking capacity: 1000A@32VDC

Rated voltage:32V

Operating temp range:-40~+200C

Terminal: Zinc alloy

Housing material: Nylon

Standards compliant: SAE J2077 ISO 8820 UL 248 Special Purpose Fuses

Cars
Trucks
SUVs
Offroad vehicles
Buses
Watercraft

Size (unit:mm)

Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive

Electrical Characteristics

Testing current	Blow Time
Testing current	Min.	Max.
110%	4 hour	-
135%	0.75s	10min
200%	0.15s	5s
350%	0.08s	0.25s
600%	0.03s

Ordering info

P/N	Rated current	Rated voltage DC	Cold resistance+/-10%	Color mark
MIN-NL1-01	1A	32V	60.88mohm	Black
MIN-NL1-02	2A		37.5mohm	Gray
MIN-NL1-03	3A		23.75mohm	Purple
MIN-NL1-05	5A		17.75mohm	Tam
MIN-NL1-7.5	7.5A		10.58mohm	Brown
MIN-NL1-10	10A		7.82mohm	Red
MIN-NL1-15	15A		5.10mohm	Blue
MIN-NL1-20	20A		3.21mohm	Yellow
MIN-NL1-25	25A		2.70mohm	Natural
MIN-NL1-30	30A		1.85mohm	Green

Mini-Nylon

Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive

Standard-Nylon

Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive

Maxi--Nylon Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive

Fuse kits

Nylon ASP Mini Auto Blade Fuse 15A 20A 25A 30A 35A 40A For Automotive
